Saber 4K+

Features and scenarios

  • 4K @ 60fps

    The Saber 4K+ runs 4K video at 60 frames per second over HDMI and IP Connections. Additionally, the USB output can now run 4K video at 30fps (Up from 1080p). Enjoy Ultra High Definition, Ultra Fast, and Ultra Smooth Video.

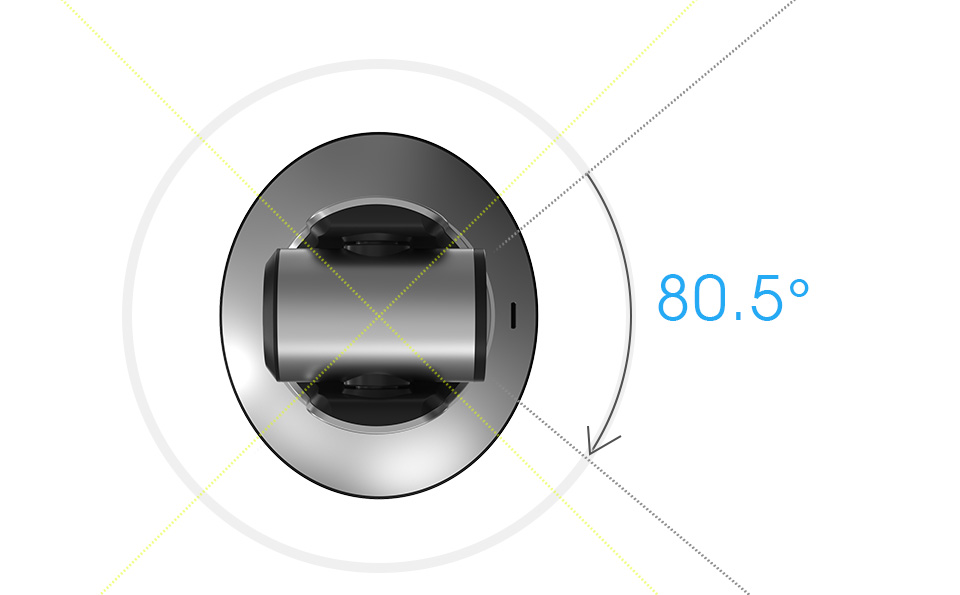

  • 80.5° HFOV

    A significant upgrade from the original Saber 4K, the Saber 4K+ increases its Field of View to 80.5°.

  • IP Live Streaming

    Show the world! Designed specifically for IP livestreaming and internet connectivity, the Saber 4K+ is the ultimate machine for broadcasting over YouTube, Facebook Live, Twitch, or anywhere else your audience may be.

  • Connectivity

    With Line in Audio, USB-C, and new simultaneous output options, the Saber 4K+ comes stock with everything you need to integrate seamlessly into your video production setup. Add in new OSD Menu options for granular control.

  • 12x Optical + 4x Digital Zoom

    12x Optical + 4x Digital zoom gets you up close and personal. Even in the largest conference rooms, the Saber 4K+’s zoom features will give you the power to see everything with smooth motion, accuracy, and precision. With both manual and auto focus options at your fingertips, your video conferencing equipment will be as detail oriented as your team.

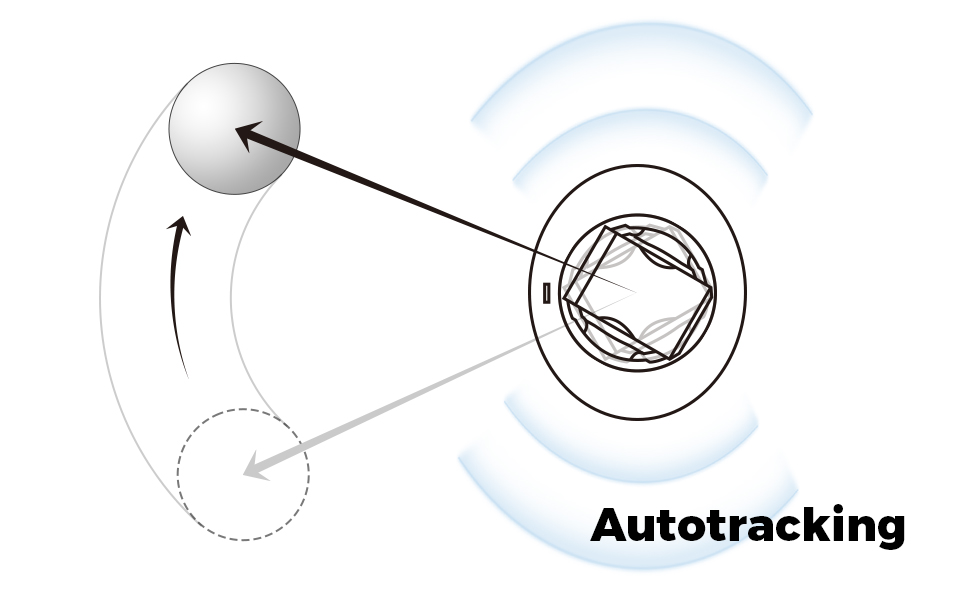

  • Advanced Autotracking

    The Saber 4K+ comes with advanced autotracking capabilities onboard. Using state of the art algorithmic processing to analyze shape and motion, our smart technology creates a seamless autotracking experience. Standard on all units produced after 25 August 2023.

Saber 4K+-0
Saber 4K+-0
Saber 4K+-0
Saber 4K+-0
Saber 4K+-0
Saber 4K+-0
Saber 4K+
  • Model
  • Saber 4K+ ANG2-12UHD-01
  • Sensor
  • 1/2.8 inch 8.42MP CMOS sensor
  • Video Formats
  • HDMI (v2.0): 3840*2160P60/59.94/50/30/29.97/25; 1920*1080P60/59.94/50/30/29.97/25/24/23.98; 1920*1080160/59.94/50: 1280*720P60/59.94/50/30/29.97/25
    3G-SDI: 1920*1080P 60/59.94/50/30/29.97/25/24/23.98; 1920*1080i 60/59.94/50; 1280*720P 60/59.94/50/30/29.97/25
    USB-C:
    NV12/YUYV: 1920*1080P5: 1280*720P15; 1024*576P25; 800*448P30
    MJPG: 3840*2160P30: 1920*1080P60; 1280*720P60; 1024*576P60: 800*448P60
    H264/265: 3840*2160P30: 1920*1080P60: 1280*720P60: 1024*576P60: 800*448P60
    IP:
    Main stream: 3840*2160P15-60; 1920*1080P15-60; 1280*720P15-60: 1024*576P15-60
    Sub stream: 720*480P15-60;640*480P15-60;640*360P15-60
  • Zoom
  • 12x optical zoom & 4x digital zoom
  • ƒ-number
  • Wide: 1.8                Tele: 3.6
  • FOV
  • 7.6°(near)~80.5°(far)
  • Min. Focus Distance
  • Wide: 0.3m               Tele: 1m
  • Presets
  • 10 via remote control; 128 via VISCA; preset precision: 0.1°
  • Rotation Angle
  • Pan: -170° ~ +170°;   Tilt: -30° ~ +90°
  • Rotation Speed
  • Pan: 0°~120°/s ;         Tilt: 0°~80°/s
  • Control Port
  • RS232, RS485 (Serial VISCA, Pelco-P/D), RJ45 (VISCA over IP), USB-C (Compatible with USB3.0 (UVC1.5), USB2.0 (UVC1.1))
  • Video Port
  • HDMI (v2.0) / RJ45 / SDI / USB-C
  • Network Speed
  • 1000 Mbps
  • Noise Reduction
  • 2D & 3D Digital Noise Reduction
  • SNR
  • >50dB
  • Focal Length
  • f=3.44 (near)~40.3mm (far)
  • Minimum Lux
  • 0.01 lux
  • White Balance
  • Auto / Manual / ATW / Push / Indoor / Outdoor / Color Temperature
  • Anti Flicker
  • 50Hz/60Hz/OFF
  • D/N Mode
  • Supported
  • Gamma
  • Supported
  • Mirror Image
  • Supported
  • Pan Tilt Flip
  • Supported
  • Iris
  • Auto / Manual
  • Electric Shutter
  • Auto / Manual
  • BLC
  • Auto / Manual
  • Focus
  • Auto / Manual
  • Video Encoding
  • H.264/H.265 (default: H.264)
  • Bit Rate Control
  • Variable Bit Rate, Constant Bit Rate
  • Video Bit Rate
  • 1024Kbps~61440Kbps
  • Frame Rate
  • 50HZ: 1fps~50fps  60HZ:1fps~60fps  (3840x2160 max. 30fps)
  • IP Protocol
  • TCP/IP, HTTP, DHCP, RTSP, RTMP, Onvif 2.4, VISCA over IP (TCP&UDP), SRT Compatible
  • POE+
  • Supported
  • Input Voltage
  • DC12V, 2A
  • Dimensions
  • 220mm×190mm×173mm
  • Net Weight
  • 1.47 Kg
