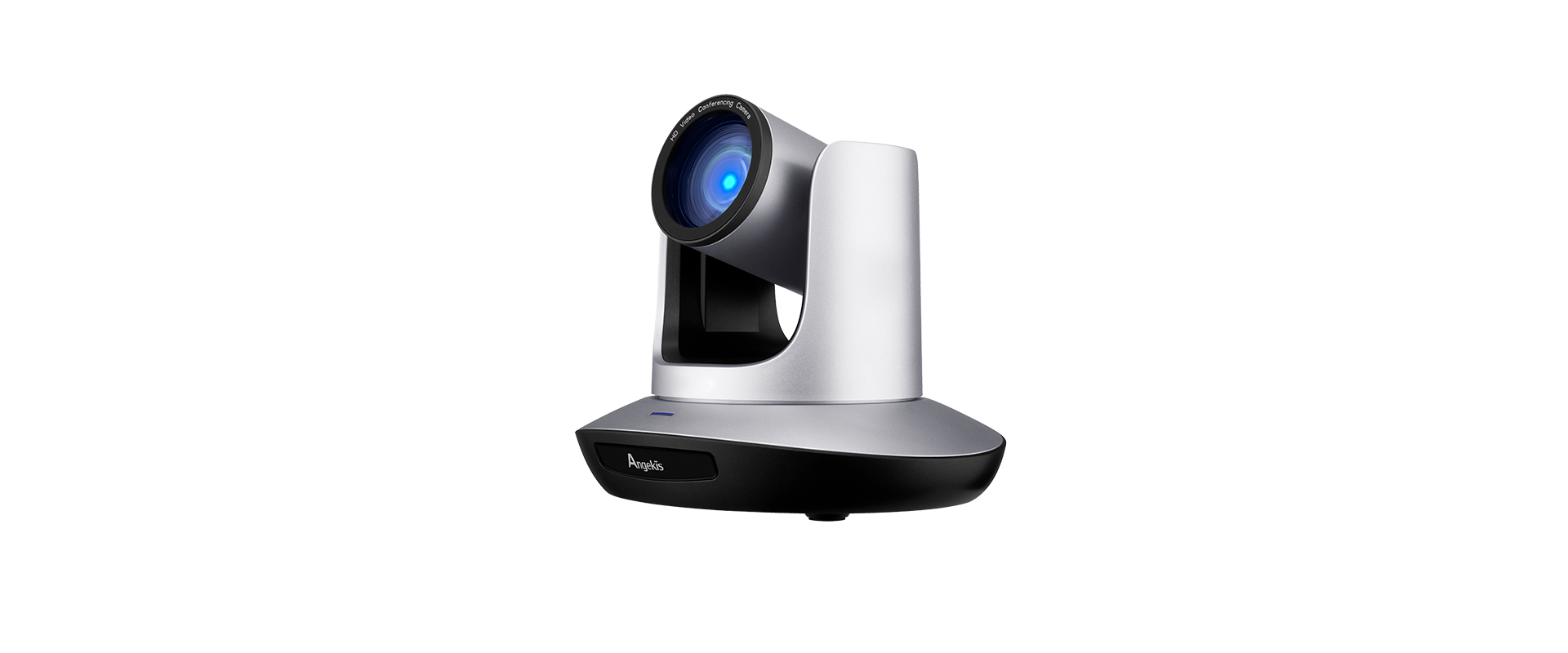

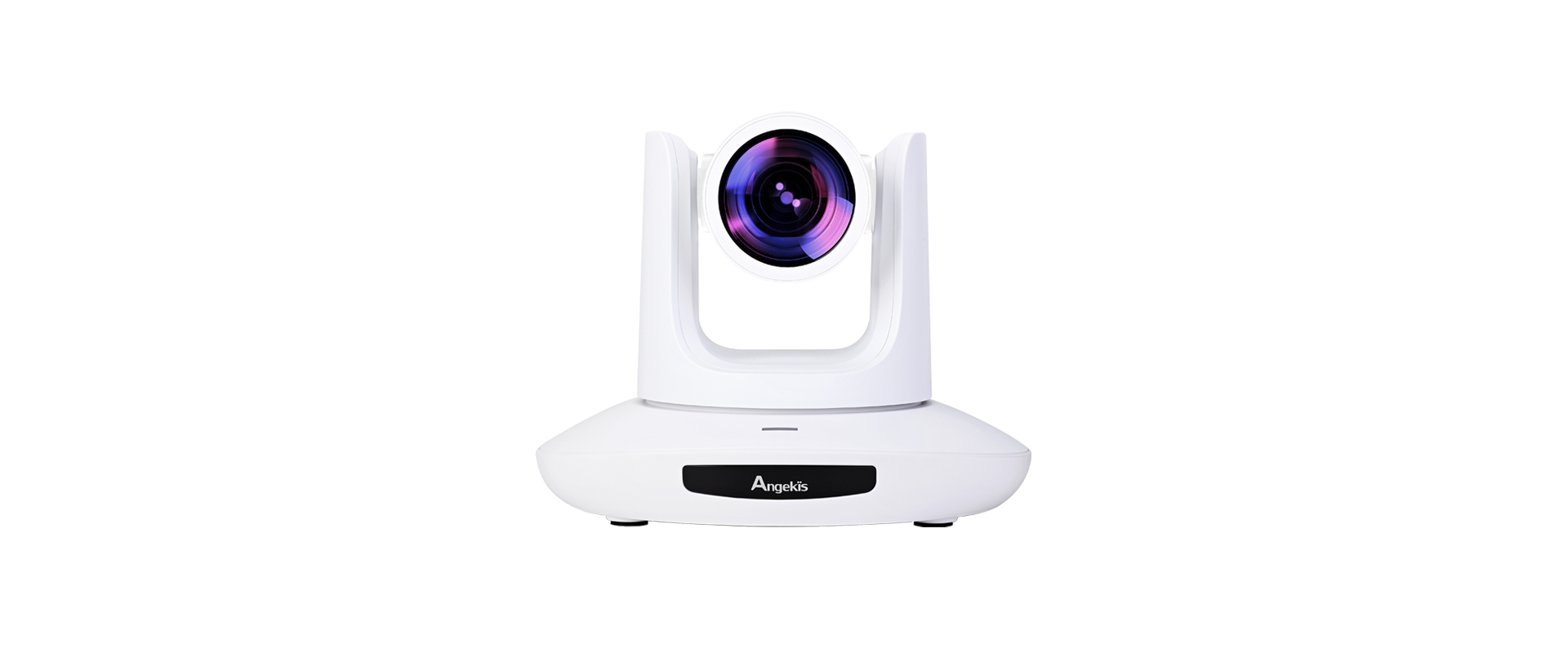

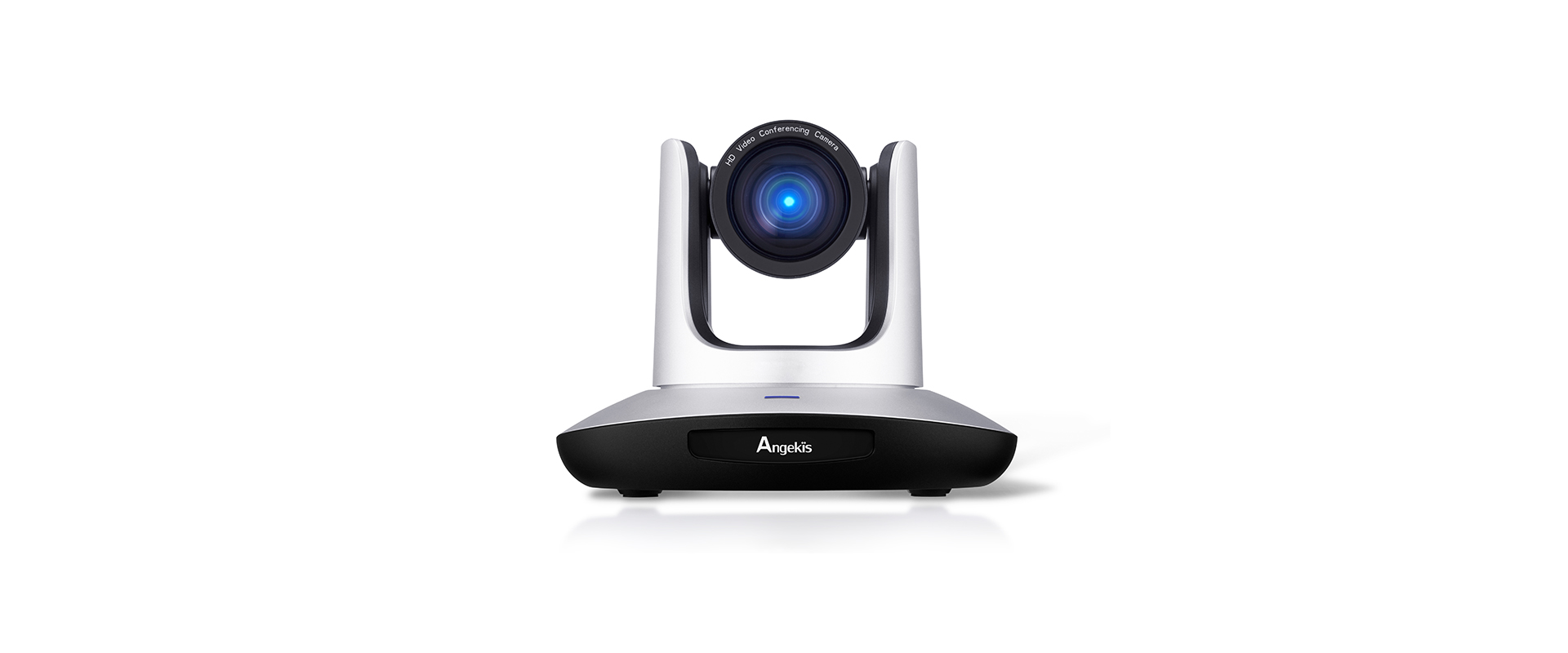

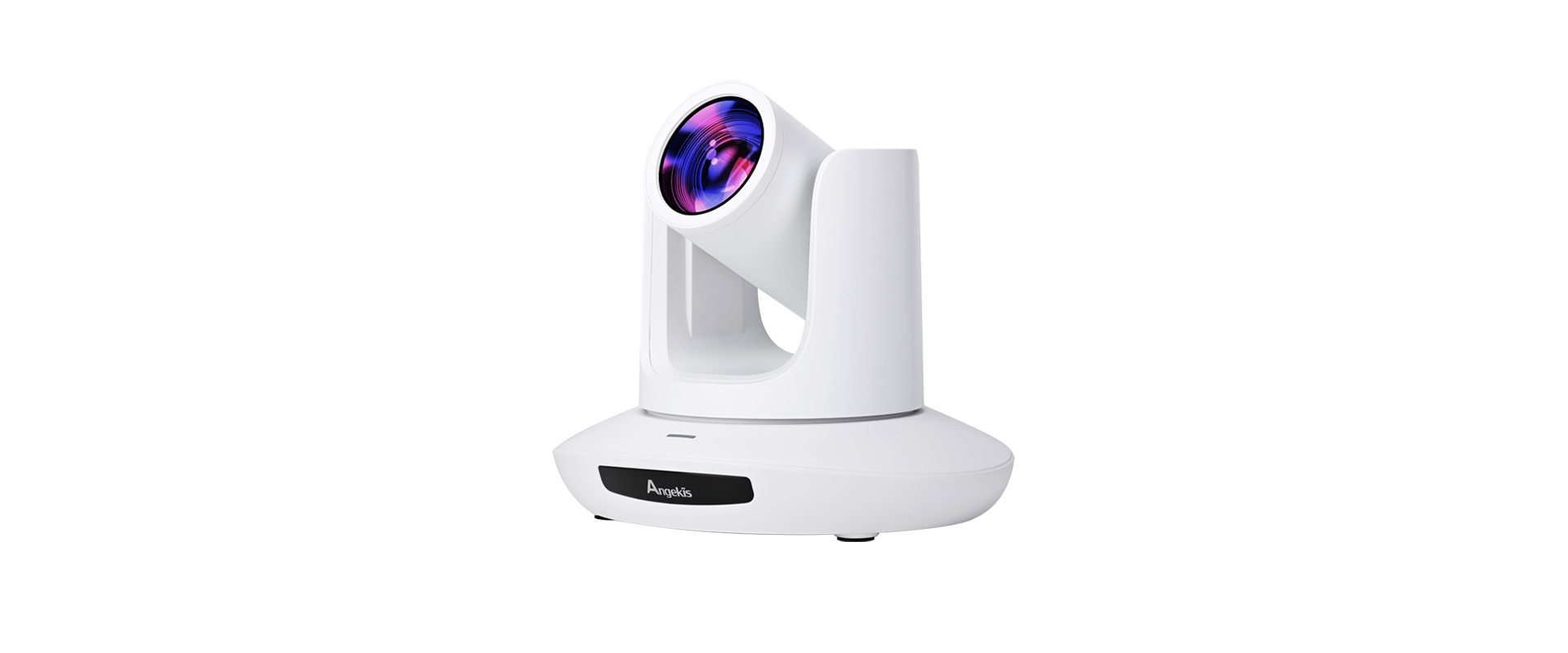

Saber Plus

Features and Scenarios

  • 12x Optical + 2x Digital Zoom

    12x Optical + 2x Digital zoom gets you up close and personal. Even in the largest conference rooms, the Saber Plus' lossless zoom will give you the power to see everything with smooth motion, accuracy, and precision. With both manual and auto focus options at your fingertips, your video conferencing equipment will be as detail oriented as your team.

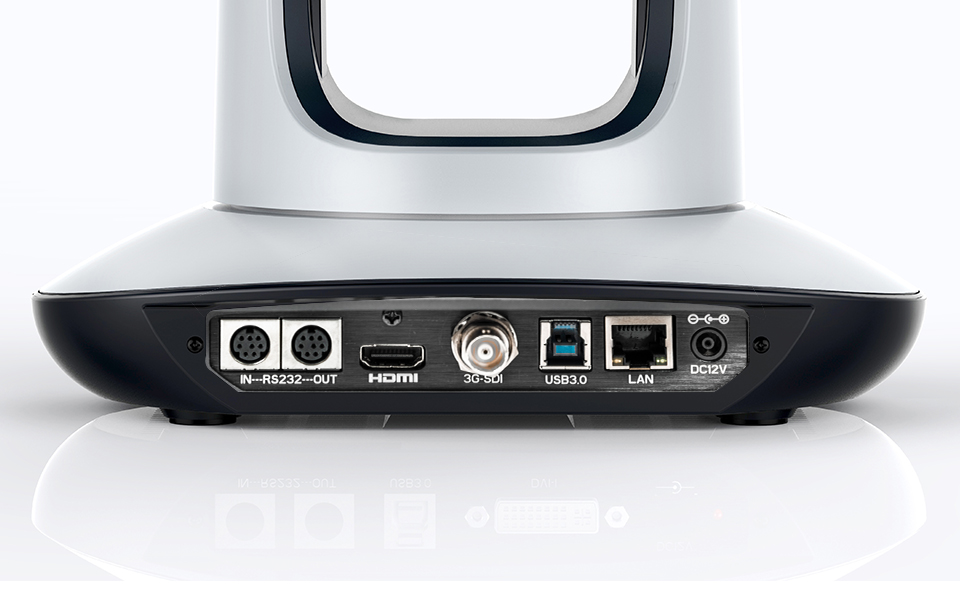

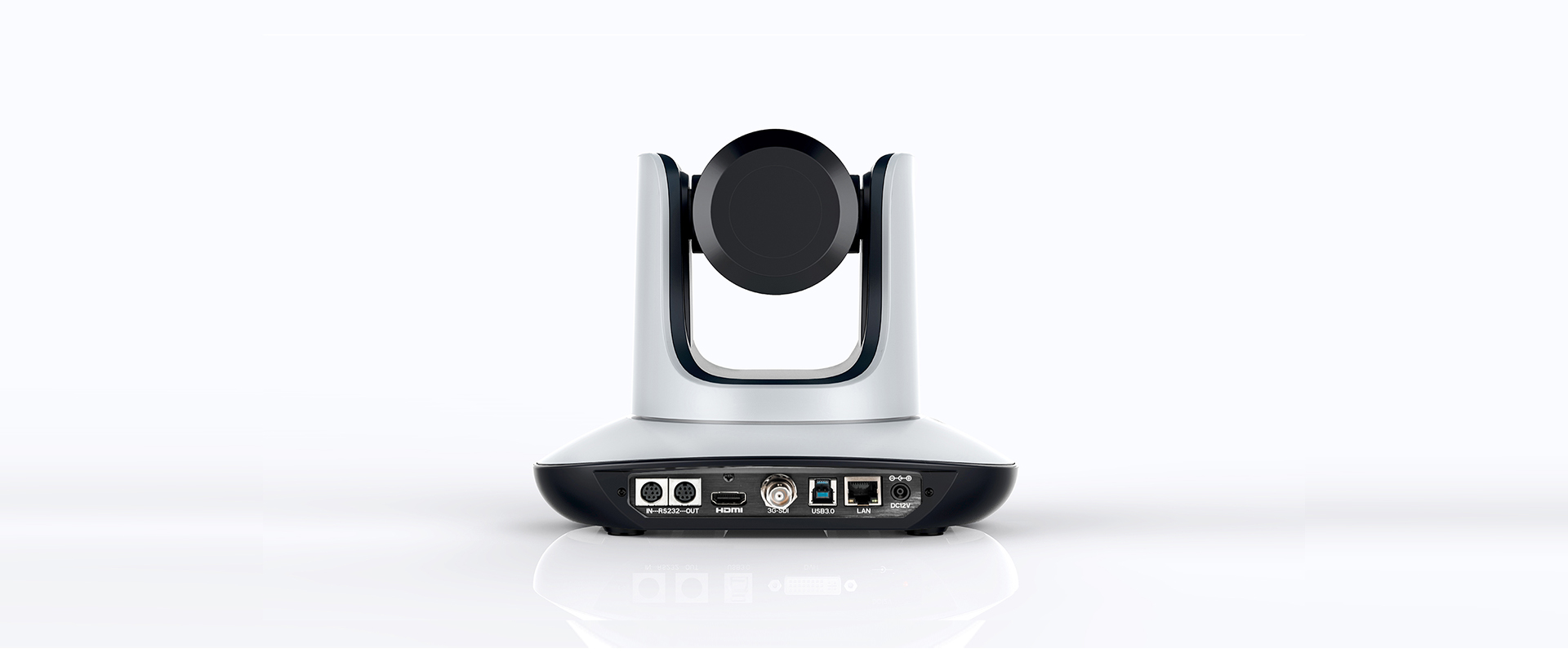

  • Simultaneous Outputs

    With RS232 In/Out, USB 3.0, 3G-SDI, LAN, and HDMI ports, you can simultaneously daisy chain, command, stream, power, and monitor your Saber Plus camera to give you maximum flexibility and control over your production.

  • Crystal Clear in Full HD

    Utilizing advanced sensors and a multi-lens camera setup, the Saber Plus delivers crystal clear, Full HD resolution. In person meetings will feel pixelated by comparison.

  • Plug and Play

    While more advanced control methods are available, the Saber Plus can also function as a plug and play device. Just plug a USB 3.0 cable into your PC or Mac and you’re ready to rock your favorite video conferencing app, cloud service, or audio system. No drivers necessary.

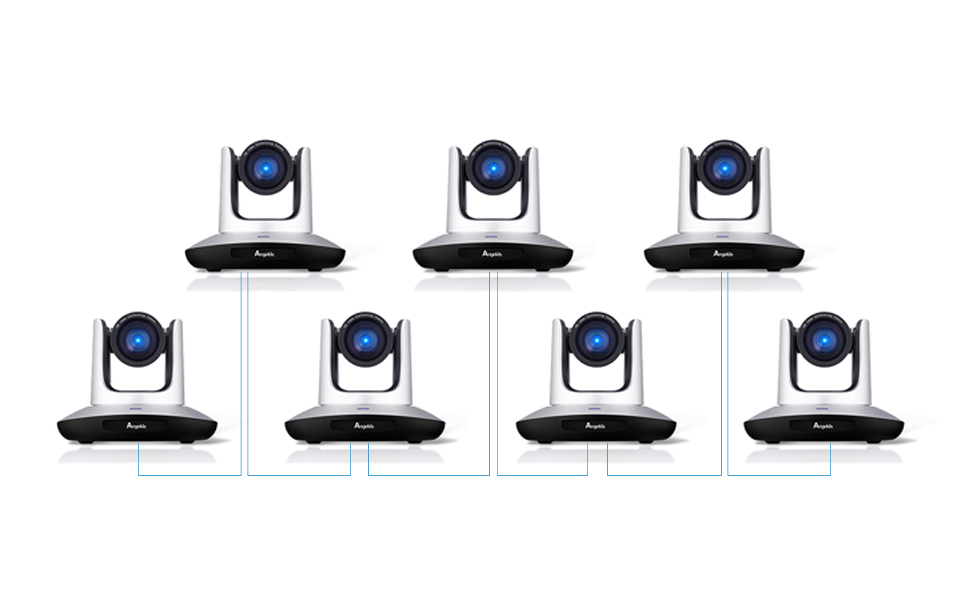

  • Multi- Camera control

    The Saber Plus was designed with professional video production in mind. Advanced integration capabilities, including RS232 In/Out ports allow you to control up to 7 cameras simultaneously.

Saber Plus
  • Model
  • IP-20FHD60
  • Sensor
  • 1/2.8 inch, 5mega pixel high quality CMOS sensor
  • Video Format
  • HDMI(V1.4) : 1920*1080P60/50/30/25/59.94/29.97/24,; 1920*1080I60/50/59.94,; 1280*720P60/50/30/25/59.94/29.97
    SDI: 1920*1080P60/50/30/2 5/59.94/29.97/24,; 1920*1080I6 0/50/59.94,; 1280*720P60/50/3 0/25/59.94/29.97
    USB 3.0: 1920*1080P60/50/30/25; 1280*720P60/50/30;
    USB 3.0& USB 2.0: 1280*720P25; 1024*576P30
    USB 2.0: 960*540P30; 640*360P30; 512*288P30
    RJ45: Main Stream: 1920*1080@1~30; Substream: 1280*720@1~30/1027*576@1~30/640*360@1~30
  • Zoom
  • 20x optical zoom & 2x digital zoom
  • FOV
  • 60°(diagonal)
  • F.no.
  • Wide: F1.5(Wide)~3.0(Tele)
  • Focal Length
  • f=5.2(near)~98mm(far)
  • Preset
  • 10 via remote controller; 128 via serial port; preset precision:0.1°
  • Rotation Angle
  • Pan: -170° ~ +170°;   Tilt: -35° ~ +90°
  • Rotation Speed
  • Pan: 0°~120°/s ;         Tilt: 0°~80°/s
  • Control Port
  • RS232 / RS485/RJ45
  • Video Port
  • HDMI/ RJ45/SDI/USB3.0/USB2.0
  • Network Speed
  • 1000M
  • Noise Reduction
  • 2D&3D
  • SNR
  • >50dB
  • Minimum Lux
  • 0.01 lux
  • White Balance
  • Auto / Manual/Auto Tracking/OnePush/Indoor/Outdoor/
  • Anti Flicker
  • 50Hz/60Hz/OFF
  • D/N Mode
  • Supported
  • Gamma
  • Supported
  • Mirror Image
  • Supported
  • PanTilt Flip
  • Supported
  • Iris
  • Auto / Manual/
  • Electric Shutter
  • Auto / Manual/
  • BLC
  • Auto / Manual/
  • Focus
  • Auto / Manual/
  • Video Encoding
  • H.264/H.265
  • Bit Rate Control
  • Variable Bit Rate, Constant Bit Rate
  • Video Bit Rate
  • 1024Kbps~30720Kbps
  • Frames
  • 50HZ:1fps~50fps  60HZ:1fps~60fps
  • IP Protocol
  • TCP/IP, HTTP, RTSP, Onvif, DHCP
  • POE
  • Supported
  • Input Voltage
  • DC12V, 2A
  • Dimension
  • 220mm×173mm×190mm
  • Net Weight
  • 1.25KGS(2.8LBS)
  • f-number
  • Wide: 1.84 Tele: 2.81
  • Minimum Focus Distance
  • Wide: 0.3 meter Tele: 1 meter
  • Presets
  • Remote controller:10;RS232: 128;Accuracy:0.1°
  • Rotation Angle
  • Pan: -170°~ +170°; Tilt:-30°~ +90°
  • Rotation Speed
  • Pan: 0°~120°/s; Tilt: 0°~80°/s
  • Control Port
  • RS232, RS485 (Serial VISCA, Pelco-P/D), RJ45 (VISCA over IP), USB3.0 (UVC1.5), USB2.0 (UVC1.1)
  • Network Speed
  • 1000 Mbps
  • Video Port
  • HDMI / RJ45 / SDI / USB 3.0 / USB 2.0
  • 2D Noise Reduction
  • Supported
  • 3D Noise Reduction
  • Supported
  • SNR
  • >50dB
  • Focal Length
  • f=3.92 (near) ~ 47.32mm (far)
  • Minimum Lux
  • 0.01 lux
  • White Balance
  • Auto / Indoor / Outdoor / Manual / Outauto / Sodium Lamp Auto / Sodium Lamp
  • Exposure
  • Auto / Manual / Bright / Shutter / Iris
  • Anti Flicker
  • OFF / 50Hz / 60Hz
  • D / N Mode
  • Supported
  • Gamma
  • Supported
  • WDR
  • Supported
  • Mirror Image
  • Supported
  • Pan/Tilt Invert
  • Supported
  • Iris
  • Auto/Manual
  • Electric Shutter
  • Auto/Manual
  • BLC
  • Supported
  • Focus
  • Auto/Manual
  • Video Encode
  • H.264/H.265(default:H.264)
  • Bit Rate Control
  • Variable Bit Rate,Constant Bit Rate
  • Video Bit Rate
  • 0Kbps~15360Kbps
  • IP Protocol
  • TCP/IP, HTTP, DHCP, RTSP, RTMP, Onvif 2.0, VISCA over IP (TCP&UDP), SRT Compatible
  • POE
  • Supported
  • Daisy Chain
  • Supports RS232 serial daisy chain of up to 7 cameras
  • Minimum Lux
  • 0.01 lux
  • Input Voltage
  • DC12V/POE
  • Dimensions
  • 220mm x 190mm x 173mm
  • Net Weight
  • 1.47 KG
  • Control Port
  • RS232, RS485 (Serial VISCA, Pelco-P/D), RJ45 (VISCA over IP), USB3.0 (UVC1.5), USB2.0 (UVC1.1)
